SIGVIEW is a real-time and offline signal analysis software package with wide range of powerful signal analysis tools, statistics functions and a comprehensive visualization system. SIGVIEW is distributed as shareware - you can download a completely functional version and use it for 21 days to find out if it suits your needs. Starting with SIGVIEW version 2.7.0 the LabJack U3 and U6 are supported. T-series support was added in version 4.0. Data can be sampled though the analog inputs at a rate up to a total of 50 kHz.

For more details, look at some of these links:

Example with a LabJack U6

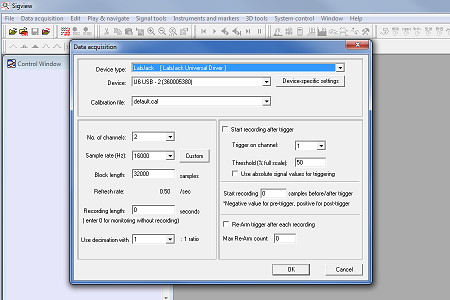

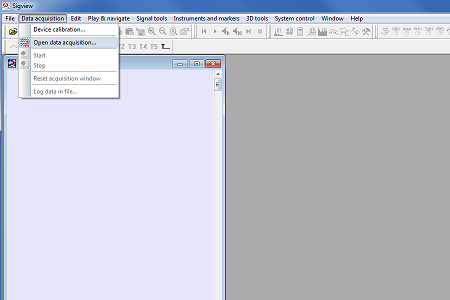

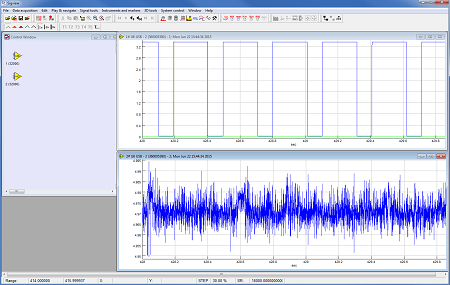

Below are some images demonstrating LabJack configuration (sampling 2 channels, AIN0 and AIN1, at the individual sample rate of 16 kHz) and displaying the samples in real-time.

Some information and images displayed on this page are from SIGVIEW's website as of November 3, 2015:
