3.9 - LJSHTmulti [U12 Datasheet]

Displays readings from up to 20 EI-1050 digital temperature/humidity probes connected to a single LabJack U12.

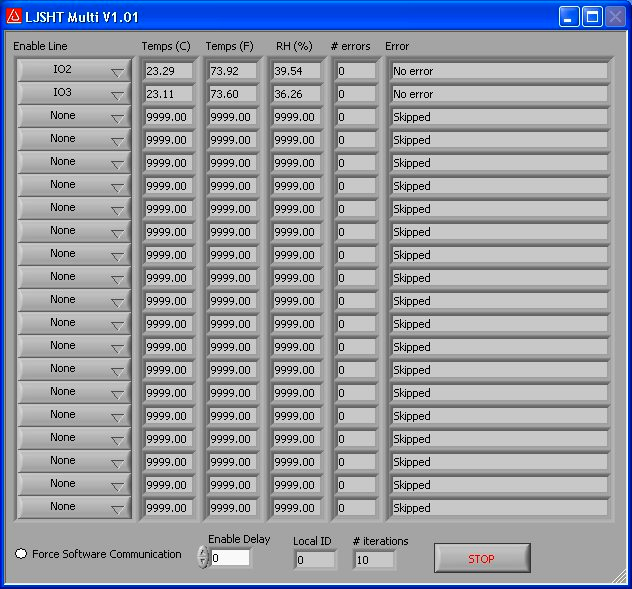

Figure 3.9-1 shows the LJSHTmulti window:

• Enable Line: Choose the LabJack U12 output used to control the enable line on each EI-1050 probe.
• Force Software Communication: Forces software based SHT1X communication, even if the LabJack U12 firmware is V1.10 or higher.
• Enable Delay: Adds a delay between each reading for testing purposes.
