Appendix B - Dimensions and CAD Models

CAD drawings are attached to the bottom of this page.  The free online Autodesk Viewer can be used to view these and make measurements among other things.

Notes:

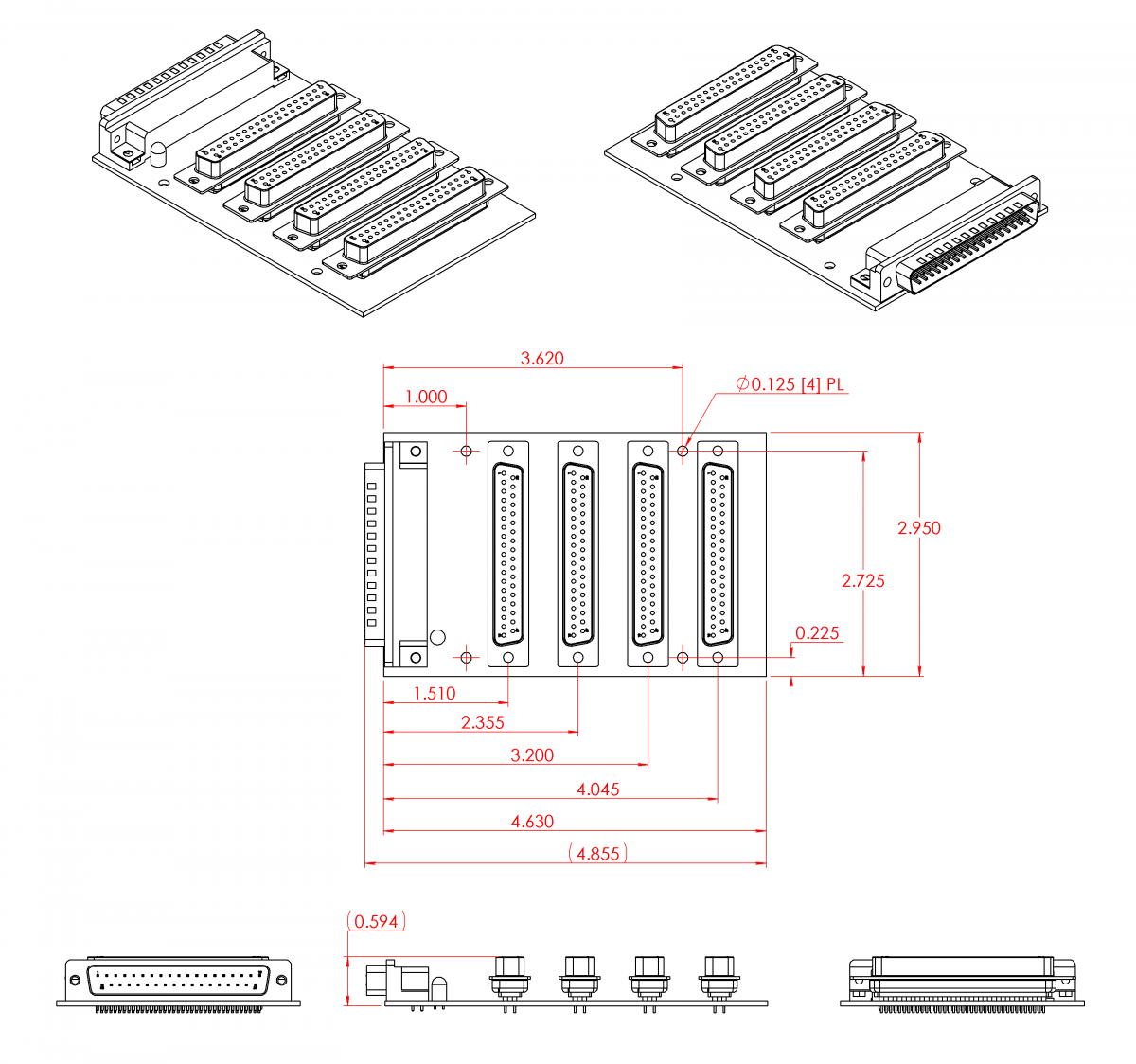

1.  Mux80 standard version depicted for clarity.  See CAD files below for OEM versions.
2.  3" Snap-Track not shown.

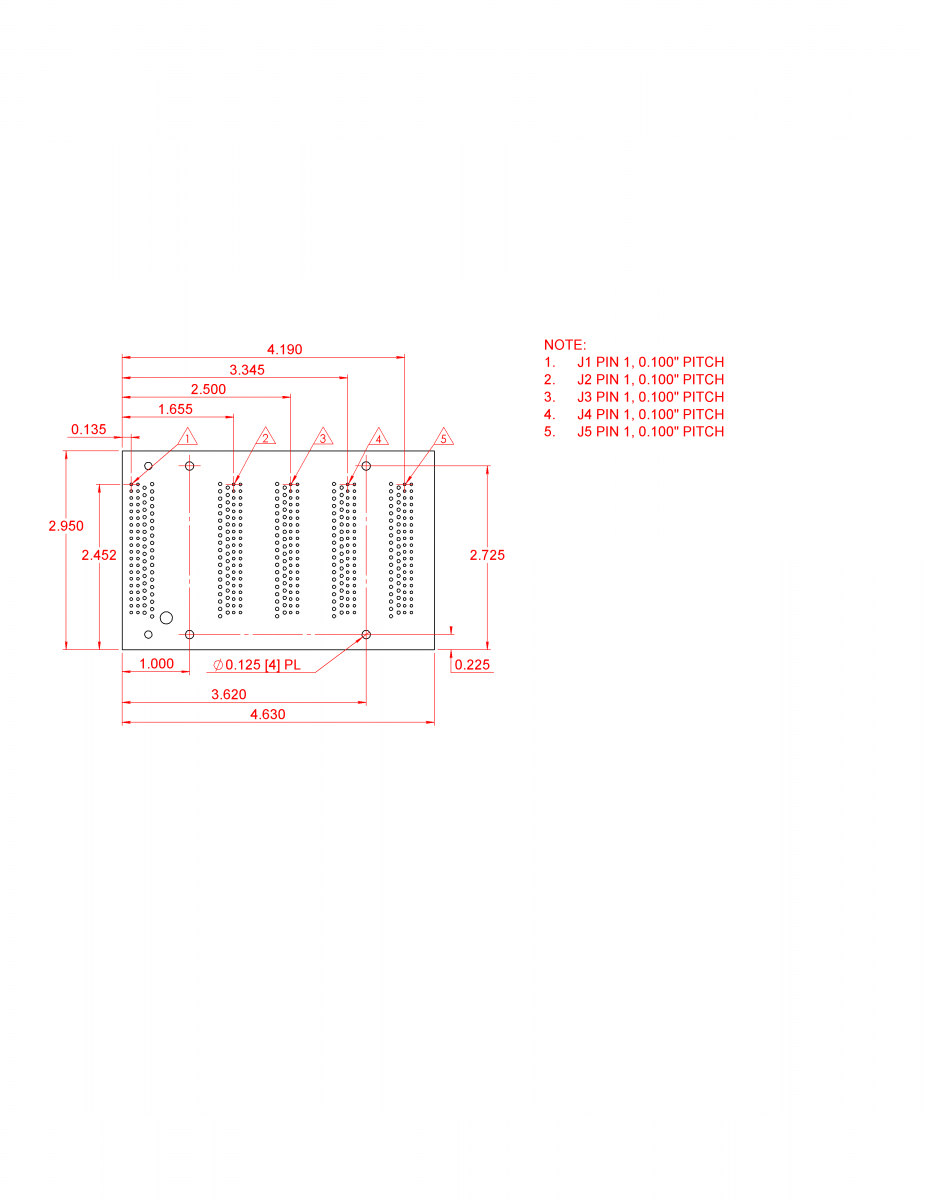

Mux80-OEM

CAD drawings are attached to the bottom of this page.  The free online Autodesk Viewer can be used to view these and make measurements among other things.

Common neutral format CAD models are provided below.  Right-click and select the "Save link as..." option to download STEP files.

Files

Mux80.DXF

Mux80.IGS

Mux80.STEP

Mux80_OEM.DXF

Mux80_OEM.IGS

Mux80_OEM.STEP

SnapTrack_3in.IGS

SnapTrack_3in.STEP
