LJSelfUpgrade - Windows Only

The application LJSelfUpgrade is included with the Windows installation package.

The processor in the UD series devices have field upgradeable flash memory. The self-upgrade application shown in Figure 1-5 programs the latest firmware onto the processor.

The figure below demonstrates the self-upgrade process for the U6. There can only be one target LabJack device connected to the PC when running LJSelfUpgrade.

Click on Get Version Numbers to find out the current firmware versions on the device. Then use the provided Firmware Upgrade File internet link to go to, go to your device's (U3, U6, or UE9) Firmware subsection, and check for more recent firmware. Download firmware files to any location on your computer.

Click the Browse button and select the upgrade file to program. Click the Program button to begin the self-upgrade process.

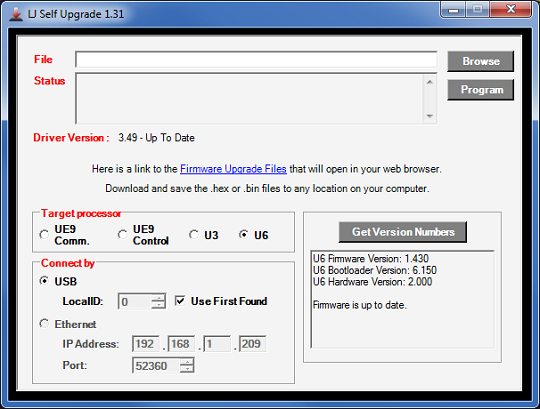

Figure 1-5. Self-Upgrade Application
