B-3 T8 Drawings and CAD Models [T-Series Datasheet]

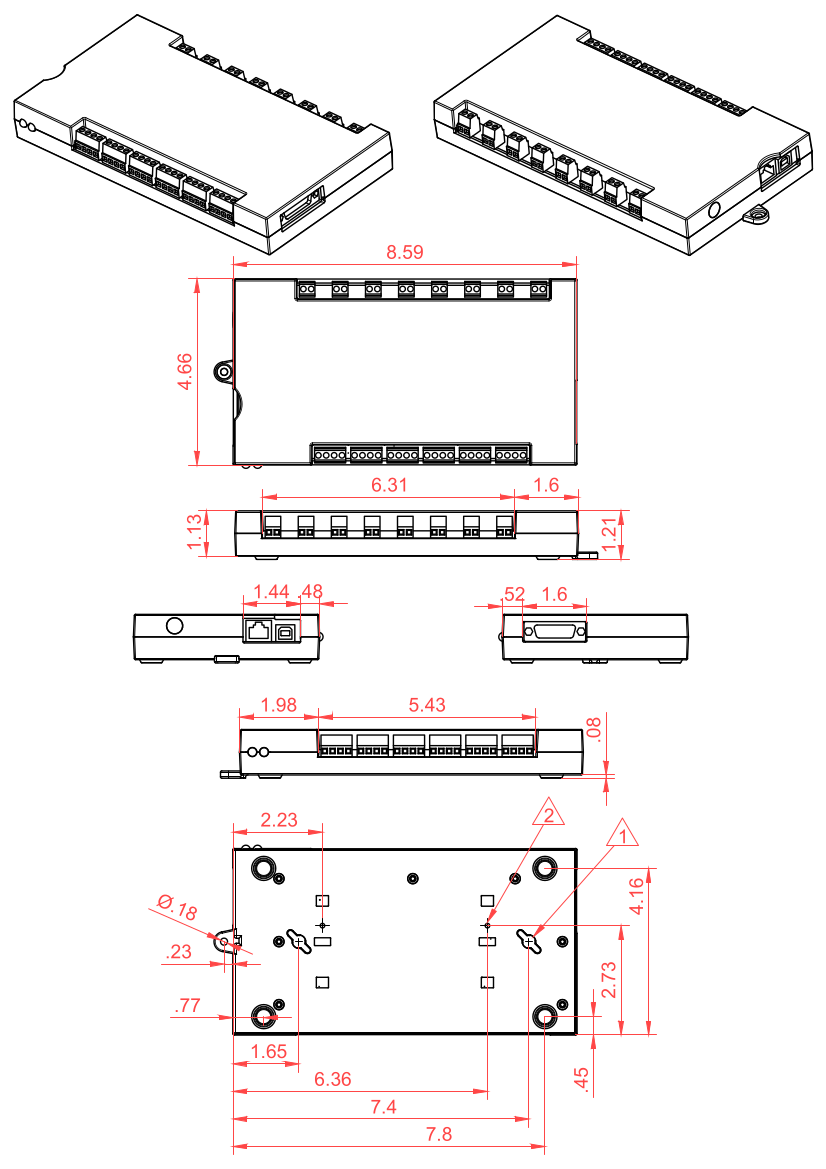

CAD drawings are attached to the bottom of this page.  The free online Autodesk Viewer can be used to view these and make measurements among other things.

Notes

  1. Mounting holes are sized for #8 panhead screws.
  2. Receptacle holes for plastic DIN rail clip ( TKAD ).
  3. Dimensions in inches.

More Details

See the OEM page for details on connector pin-headers, holes, power supply information, part options, and more. Currently there is not an OEM version of the T8.

Files

Common neutral format CAD models are provided below.  Right-click and select the "Save link as..." option to download STEP files.

T8_Case.stp

T8_Model.step
