LJStreamUD - Windows Only

LJStreamUD is a simple, ready-to-run executable that streams up to 16 input channels from a single device. It displays selected channels on a graph and writes data to file. Generally used for >100 scans/second^[1].

Supported devices

• U3

• U6

• UE9

Downloads

The application LJStreamUD is included with the main installation package.

For LabVIEW programmers, the source code is available in the LabVIEW_LJUD archive.

Overview

See Section 3.2 of the applicable user's guide for background on streaming. Also see the analog input section (2.x) and the UD driver stream section (4.3.x).

LJLog vs. LJStream: We suggest that you use LJLogUD if possible, and only if you need to go too fast for LJLogUD do you then switch to LJStreamUD.  LJLogUD uses command-response mode, so it acquires and processes 1 scan^[1] at a time at the specified interval and is generally used for ≤100 scans/second.  LJStreamUD uses stream mode, so each iteration it retrieves and processes 1 seconds worth of scans and is generally used for >100 scans/second.  For more discussion of command-response mode and stream mode see Section 3.0 of the applicable user's guide:  U3, U6, or UE9.

LJStreamUD vs. LJStreamM: LJStreamUD supports the U3, U6, and UE9. LJStreamM supports T-Series devices.

Clearing Errors: Errors such as bad program settings can break the typical program execution. In most cases these errors can be cleared without exiting LJStreamUD by using the Configuration panel.

• Opening the configuration panel will clear the current error. The next program loop will run error free, however note that this will only resolve one-time errors.

• Some device connection issues can be resolved by opening a new device connection using the Configuration panel. If you run into a device connection issue, try using the "ANY" connection options for every setting. This will attempt to open the first found UD-compatible LabJack device that is visible to the computer.

• Bad program configurations can be cured by loading the default program config file LJUD_Default_Configs.cfg using the Configuration panel. LJUD_Default_Configs.cfg is saved to the current working directory each time LJStreamUD is opened.

See the “Default Configuration Files” and “Configuration Panel” sections below for more information.

Default Configuration Files

LJStreamUD generates the following configuration files in the current working directory. None of these files should be modified outside of the program:

• LJStreamUD.cfg: Contains logger control configurations such as # Channels, Ch+, what channels to Graph, etc. This is a file that the program loads on startup, and it is the file that your control configurations are saved to when you close the program.

• LJStreamUD_open.cfg: Contains device open settings (DeviceType, ConnectionType, Identifier). This is a file that the program loads on startup.

• LJUD_Default_Configs.cfg: Contains the default experiment configurations for LJStreamUD.cfg. These are the configurations you would see when you load the program for the very first time. If there is some issue with LJStreamUD.cfg and you want to start from a known working configuration, load this file as your experiment configuration using the configuration button(s). See Select New Config in the Control Descriptions section for more information about loading a configuration file.

Startup and Shutdown Behavior

When the program is started, the configuration file LJStreamUD.cfg is read to determine the starting program configurations. If there is a problem loading the program configuration file, default configurations will be loaded. LJStreamUD_open.cfg is read to determine the starting LabJack device open configurations. Any errors that occur when trying to open a device connection will be displayed under Last C-R Error Message. A new device connection can be made at any time using the Configuration button; see the “Configuration Panel” section below.

When you exit the program, the current program settings are saved to LJStreamUD.cfg and device open configurations are saved to LJStreamUD_open.cfg. These files are saved to the current working directory, which will also be loaded the next time LJStreamUD is opened.

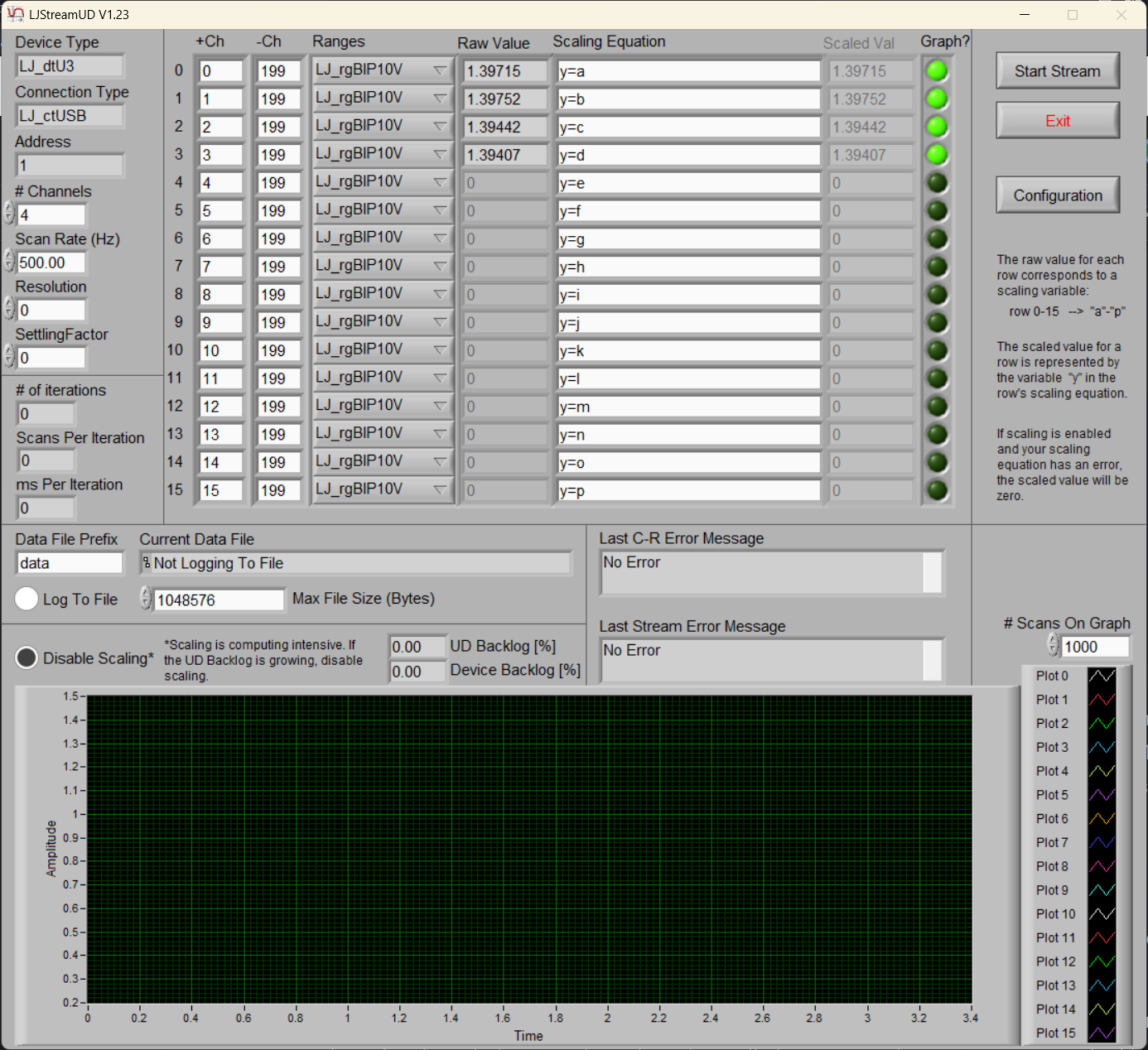

Control and Indicator Descriptions

Device Type, Connection Type, and Address (Opening):  These indicators display information about the device connection that has been claimed by the program. By default the program will open the first device connection it can find. To make a new device connection, click the Program Configuration button then use the “Open a New Device Connection” options to make your desired connection. When you exit the Configuration panel and LJStreamUD, the connection options you chose will be loaded the next time LJStreamUD is opened.

# Channels: 1-16.

Scan Rate: Put in the desired scan^[1] rate.  Sample rate is scan rate times # Channels.  See Section 3.2 of the U3/U6/UE9 User's Guide for more information.

Resolution: Affects the U6 only.  Increasing this index value decreases noise and increases sample time.  See Section 3.2 of the U6 User's Guide.

SettlingFactor: 0-255.  Affects the U6 only.  See StreamConfig.

# of Iterations: The number of program iterations since stream was started. This value is only updated while stream is active (after the Start Stream button is pressed.)

Scans Per Iteration, ms Per Iteration:  This program uses the LJ_swSLEEP wait mode and sets numScansToRead equal to Scan Rate.  That means Scans Per Iteration should always be equal to Scan Rate, and ms Per Iteration should be 1000 milliseconds on average.  For stream details see the Stream Mode section (U3/U6/UE9) and Stream Mode Example Pseudocode section (U3/U6/UE9) in the datasheet.

+Ch/-Ch: +Ch is short for Positive Channel and -Ch is short for Negative Channel.  LJStreamUD is designed to read the voltage from analog input channels. Voltage is the potential difference between 2 points, thus in each row you need to specify the 2 points. For example, the default values for the first row are +Ch=0 and -Ch=199, which means the device will do a single-ended (versus GND) read of AIN0.

There are special analog input channel numbers that allow you to read other types of channels (DI, Timers, Counters).  See the special channel support described in Section 3.2.1 or 3.2.2 (stream mode section) of the applicable User's Guide.

• U3 Users Guide section 3.2.1

• U6 Users Guide section 3.2.1

• UE9 Users Guide section 3.2.2

For example, if you have a U3 and you want to read/log the state of the FIO & EIO lines, type the value 193 into the +Ch cell and you will read a 16 bit number that contains the state of all 16 I/O lines.

You can put any channel in any row.  For example, you could set the first row to +Ch=5 and -Ch=199 to do a single-ended read of AIN5, or you could set the first row to +Ch=201 to do a read of Timer1 (assuming Timer1 has been enabled, -Ch does not matter).

Ranges: Select the desired range, which is related to gain.  Not all devices support all ranges, but starting with UD V3.19 the best range available (next higher range) will be selected rather than throwing an error.

The U3 does not support any range settings, so any value can be used.

Valid U6 Ranges:

• LJ_rgBIP10V: ±10 V i.e. Gain=x1

• LJ_rgBIP1V: ± 1 V i.e. Gain=x10

• LJ_rgBIPP1V: ±0.1 V i.e. Gain=x100

• LJ_rgBIPP01V: ±0.01 V i.e. Gain=x1000

Valid UE9 Ranges:

• LJ_rgUNI5V: 0-5 V, LabJackUD Default

• LJ_rgUNI2P5V: 0-2.5 V (not supported with resolution=18)

• LJ_rgUNI1P25V: 0-1.25 V (not supported with resolution=18)

• LJ_rgUNIP625V: 0-0.625 V (not supported with resolution=18)

• LJ_rgBIP5V: ±5 V

Note: due to the way this program and the UD driver parse the channels list, all rows with the same number in +Ch will use the range set by the last row with that same +Ch.

Raw Value: The value read from the channel entered in the Ch+ column for the row.

Scaling Equation: Scaling equation applied to the raw value for the row. This scaled value is reported in the Scaled Val column when Disable Scaling is turned off. The raw value for each row is mapped to a variable as follows:

row 0-15 → "a"-"p"

For example, the default scaling equation for row0 is y=a, where y represents the scaled output value and a is a variable representing the raw value of the row.

Everything in the scaling equation after the characters // is ignored if you want to add comments.  Examples:

y=c // Scaled value equal to raw value from 3rd row
y=100*c // EI-1034/LM34 voltage to deg F
y=c-273.15 // deg K to deg C
y=((c-273.15)*9/5)+32 // deg K to deg F
y=TCVoltsToTemp[K:c:a] // Type K, t/c voltage from 3rd row, CJ temp from 1st row

For more details see the LJLog/Stream Scaling Equations page.

Scaled Val: The value calculated from the scaling equation for the row. Only updated when Disable Scaling is turned off. See Scaling Equation above.

Graph?: Determines whether the channel is graphed. The channel is graphed if the Graph? button is selected (lit up green) and the row is active according to the # Channels value.

Note: graphing many channels and using a large # Scans on Graph configuration can reduce performance and limit the program scan^[1] interval. Limit the number of channels graphed to <20 or limit # Scans on Graph to help avoid these complications.

Data File Prefix:  The program uses this as the base string when it makes a file name.  When the program starts a new file, it appends a “_#” to the specified prefix, where "#" is the first unused number from 0-99999. For example, the default value for Data File Prefix is “data”. The first log file in an empty working directory would be named ‘data_0.dat’, the second log file would be named "data_1.dat", etc.

Log To File:  When this button is selected, data logging is enabled. Data will be logged to file when stream starts. You can also enable Log to File after starting stream to start writing data to file.  The resulting file is a tab-delimited ASCII-encoded file.  Files are written with a .dat extension. To quickly open log files in Excel or Open Office Calc, change the extension to .xls or .ods.  To import the file to a Google Spreadsheet, change the extension to .tsv before uploading.

At the top of the first log file since starting stream is a human readable system timestamp of when you started writing to file. After the date/time formatted timestamp is a machine-readable timestamp in seconds since Jan 1, 1904. The timestamps do not reset when a new file is automatically created due to the file size exceeding Max File Size.

The first column of the log file is the time in seconds since starting stream, which is calculated using the formula: TimeSinceStreamStart = ScanNumber / ScanRate. Subsequent columns in the log file correspond to your channel sample data as determined by # Channels, your Ch+ entries, and the Disable Scaling control.

Each row of logged data requires roughly 18 bytes for the timestamp plus 11 bytes per channel.  If you log 8 channels, once per second for 60 seconds, you could expect a file size of approximately (18 + 11*8) * 60 = 6360 bytes. A 1 TB hard drive could hold a few hundreds of years of this data.

Current Data File: This indicator shows the path to the current file that data is being written to. When Log to File is not enabled, this indicator will say ‘Not Logging To File’.

Max File Size (Bytes):  When the current data file exceeds this limit, the file is closed and a new file is started. See the Data File Prefix description above for information on file naming conventions.

Disable Scaling:  Determines whether the scaling equations are applied to the raw channel readings. Scaling is computing intensive.  If the UD Backlog is growing, disable scaling.

UD Backlog and Device Backlog:  These will typically fluctuate at lower values, but if they are continuously growing it means data is not transferring fast enough and overflow will eventually happen.

Command-Response Error Message: This indicator shows any errors that occurred in the most recent program iteration when stream is not active. Error messages will be displayed if there are UD driver or scaling equation errors. If there are both UD driver and scaling equation errors, only the UD driver error message will be displayed. UD driver errors should be resolved as soon as possible, and all errors should be resolved before starting stream. Note: when a scaling equation error occurs, the scaled value indicator for the channel will be set to zero.

Last Stream Error Message: This indicator shows any errors that occurred the last time stream was active. Only UD driver errors are displayed; scaling equation errors should be resolved while stream is inactive. Note: when a scaling equation error occurs, the scaled value indicator for the channel will be set to zero.

Start Stream, Stop Stream: Pressing the Start Stream button will start stream mode acquisition, then pressing Stop Stream will end stream mode acquisition. Data will start being written to file if Log To File is enabled and stream is enabled. This control also starts and stops graph updates.

Exit: This control will exit the program. It is the only way the program should be exited to ensure that device connection resources are released and configurations are saved properly.

Configuration: The Configuration button opens a panel with program configuration options. See the “Configuration Panel” section for more information.

# Scans on Graph: Controls how many scans^[1] are shown on the graph. For example, if you set this value to 120 and you acquire 2 scans/second (a scan interval of 500ms) the graph will show 60 seconds of data. The graph is similar to a strip chart, and it displays the last n scans. To clear the graph, change any entry in the Graph? array of buttons.

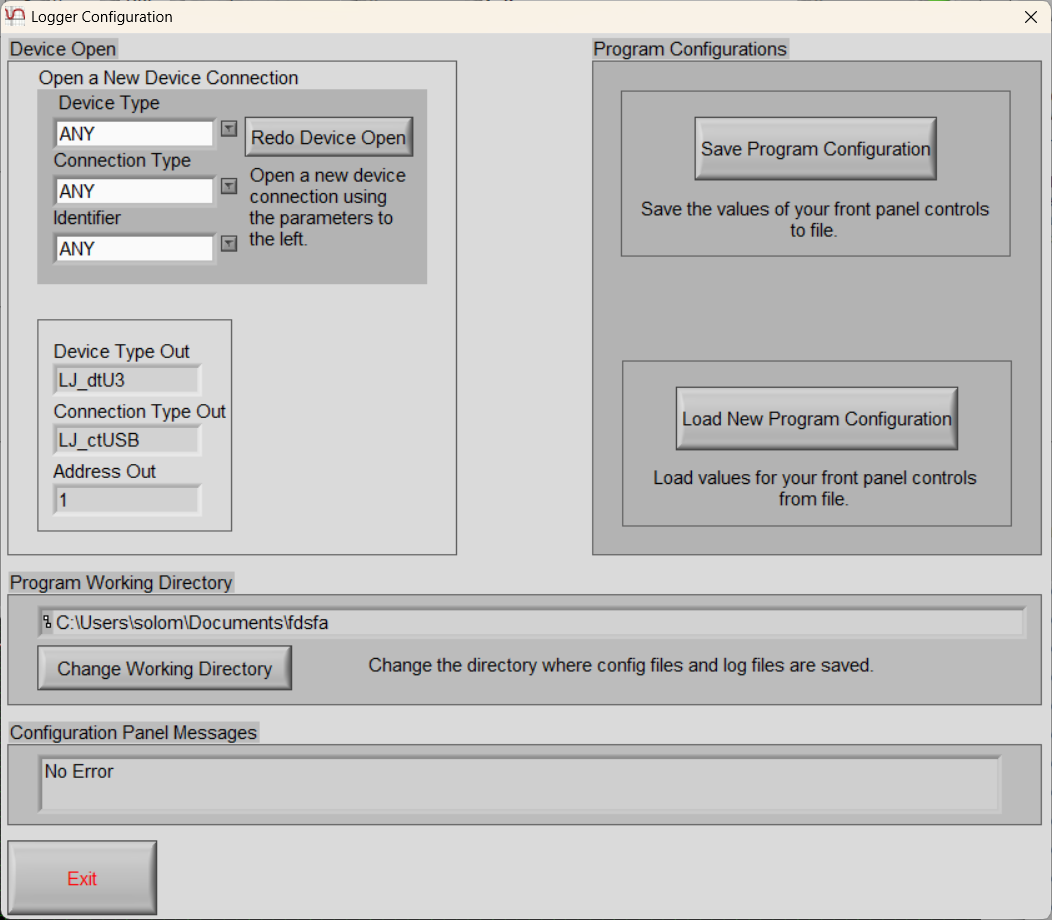

Configuration Panel

The configuration panel has controls to open a new device connection, change the program working directory, and save or load program configurations from file. The panel can be opened by clicking the Configuration button near the center-right of the main program window. Note: opening the panel stops channel acquisition and logging until the panel is closed.

Open a New Device Connection: The “Open a New Device Connection” section can be used to open a different device connection. Change each of the Device Type, Connection Type, and Identifier fields then click Redo Device Open to attempt to open a new device connection. If the connection fails, an error message will be displayed and the previous device connection will be reestablished as long as the connection is still valid. If you successfully open a new device connection, the new device connection details will be displayed and later saved to LJStreamUD_open.cfg upon closing the program.

Program Working Directory: The “Program Working Directory” section displays the current working directory for the program. This determines the location of the program configuration file and where log files are saved.
The Change Working Directory button can be used to change the current working directory where program configuration files and log files are saved.  After navigating to the desired directory in the pop-up window, click Select Cur Dir at the bottom-right.  For more details see the LJLog/Stream Working Directory page.

Program Configurations: The “Program Configurations” section allows you to save the current program configuration to file or load a configuration from an existing program configuration file. New program configuration files are saved to the current working directory; see the “Program Working Directory” section. Program configuration files save the following program controls: # Channels, Scan Rate (Hz), Resolution, SettlingFactor, Ch+/Ch-(for every row), Ranges (for every row), Scaling Equation (for every row), Graph? (for every row), Data File Prefix, Log to File, Disable Scaling, Max File Size (Bytes), and # Scans on Graph configurations.

Configuration Panel Messages: Any errors that occur while attempting to make changes in the configuration panel will be displayed in the “Configuration Panel Messages” section. Messages are also displayed upon successful configuration changes.

Revision History

1.06: Not compatible with older config files, so delete ljstreamud.cfg before running the first time!  Changed config file delimiter to "#!#" instead of "," for better international compatibility.  Made maximum file size a user control.  Scaled values now grayed-out if scaling is disabled.

1.07: Turned on scroll bars, for use on smaller monitors.

1.08:  Minor changes to the process used to find the next available file number.

1.09:  No longer disables timers and counters.  Added controls for Resolution and SettlingFactor.

1.10:  Makes error display red if there is an error.  Fixed typos in header for data files.

1.11:  Fixed jumbled display on Windows 7.  Comments now allowed in scaling equations starting with "//".

1.12:  Added support for registry storage of working directory.  Now shows errors in command/response
mode (when not streaming).

1.13:  Changed to maintain display of last stream error, and thus does not show command-response errors when not streaming.  Changed timestamp in header of data file to show seconds.

1.14:  Fixed bug in OpenAny where if it did not find any devices it would try 128 times to open a UE9 at 0.0.0.0.

1.15:  Two changes.  The first is that it now supports a config file that lets you specify a particular device to open.  See the description of "Device Type & Address" above.  The second is that it now uses the filename of the application to specify the names of the config files and to specify the location of the working directory registry key.  The former means if you make a copy of LJLogUD.exe called LJLogUD2.exe, the config files will be LJLogUD2.cfg and LJLogUD2_open.cfg and thus each copy has its own config files.  The latter means you can use a different working directory for each copy, although you don't have to.

1.16:  Added "Write To File" control to items saved in config file, so the application will now remember how this control was last set.

1.17:  Changed all text to Segoe UI font so screen items are aligned regardless of system font size.

1.18:  Added support for SignedLSWMSW[lsw:msw] function in scaling equations to handle quadrature reads.  For efficiency, scaling equations now skipped if no scaling is needed (e.g. y=a).

1.19:Set minimum value of #Channels to 1.  Fixed problem where name of the exe was not detected properly.  Fixed issue where you could never decrease the number of channels shown on graph.  Changed version check sub-vi so it only shows prompt when new version available ... not on version check errors.

1.20: Changed Max File Size" upper limit to 2000000000 due to an error when you try to write a file bigger than 2^31 bytes.

1.21: Added configuration selection and save options.

1.22: Fixed SignedMSWLSW scaling equation functionality. This was previously returning an unsigned 32-bit integer representation. It now returns a signed 32-bit integer representation.

1.23: Reworked configuration file handling, including adding the configuration panel. Moved the 'Change Working Directory' button to the configuration panel. Refactored the write to file functionality. Added scaling equation error messaging. Renamed the 'experiment' configuration file to 'program' configuration file. Increased front panel text size, changed the font to Arial (monospace), set the minimum panel size, and other minor front panel UI changes.

Footnotes

[1] A scan consists of one sample from every channel in a scan list. As it relates to LJStreamUD, a scan would consist of a sample from every channel (up to # Channels) in the Ch+ column.
