Dashboard
After selecting devices, a tab named "Dashboard" is available that displays and controls the basic functionality of a device. This tab shows the outputs of the DB37 and DB15 connectors.
Key Features
Reading and writing the state (high/low) and direction (input/output) of the FIO/EIO/CIO/MIO digital input and output lines
Reading and writing the DAC analog output channels (DAC0 and DAC1)
Reading the 14 analog input lines (AIN0 through AIN13)
![](../__attachments/49645455/kiplingdashboardtn.jpg?inst-v=51d4f3d4-f944-431e-987d-5a0ee67e97c6)

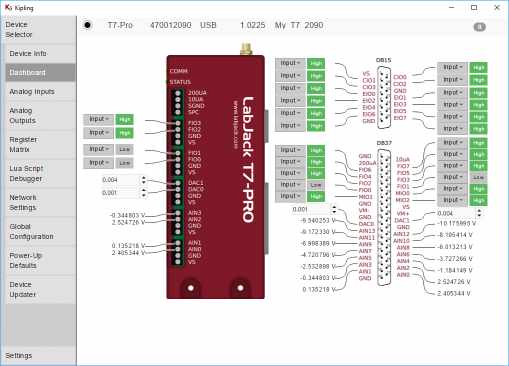

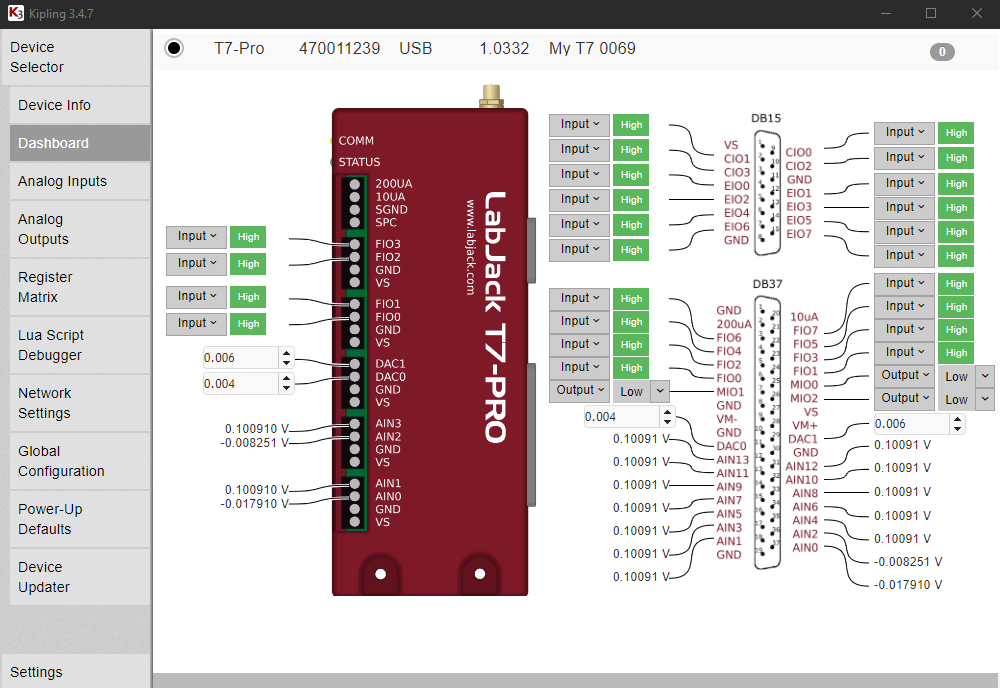

T7 opened in the dashboard tab

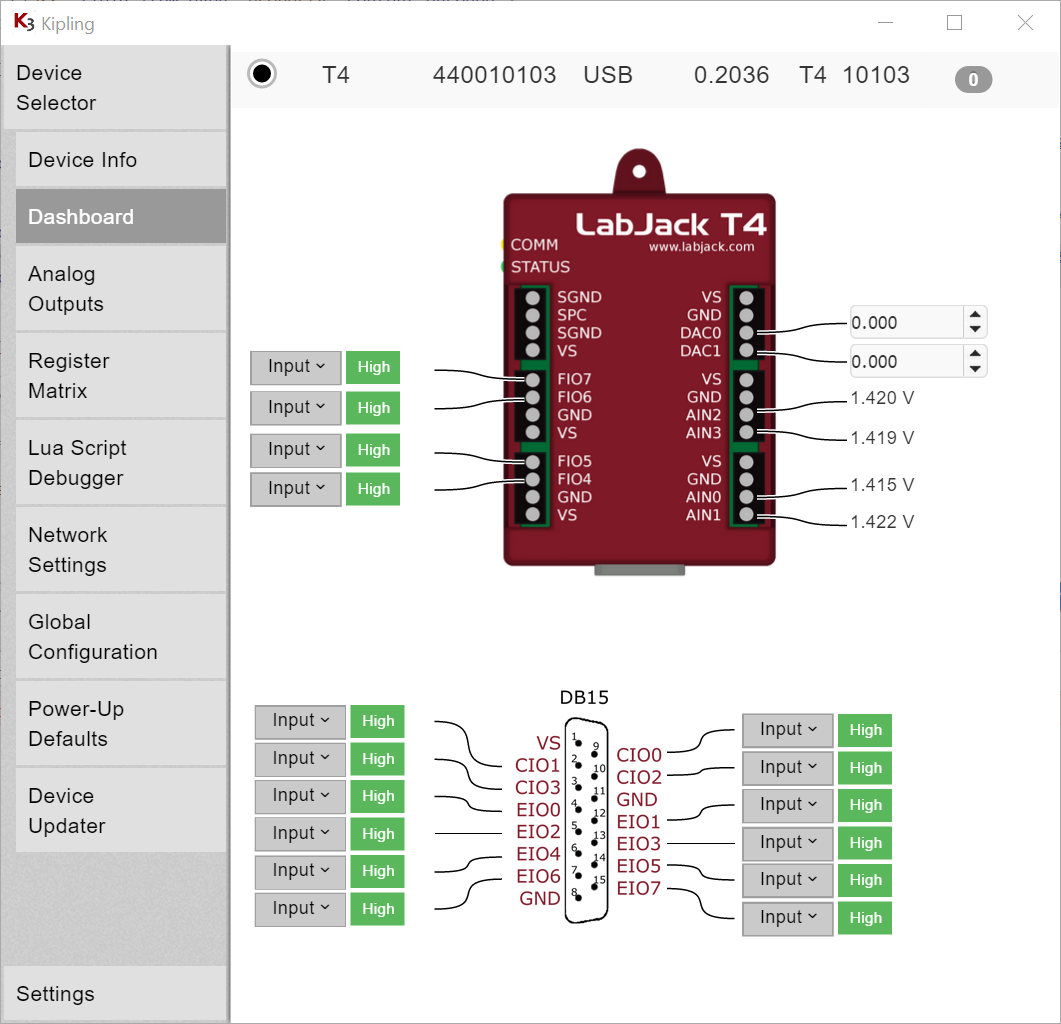

T4 opened in the dashboard tab
![](../__attachments/49645455/50084142-fc08-fdf5-eb4a-89b1df47661ct8_dashboard.jpg?inst-v=51d4f3d4-f944-431e-987d-5a0ee67e97c6)

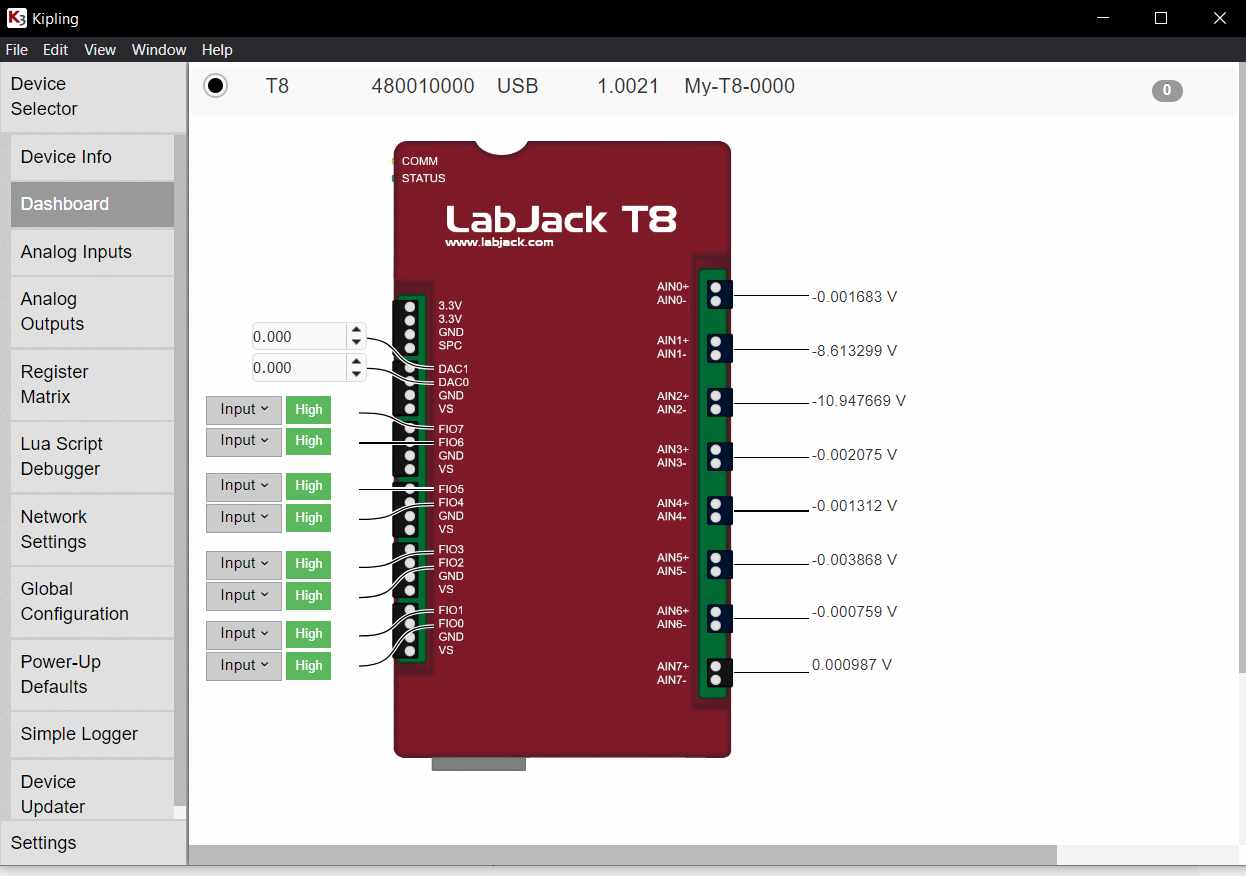

T8 opened in the dashboard tab
