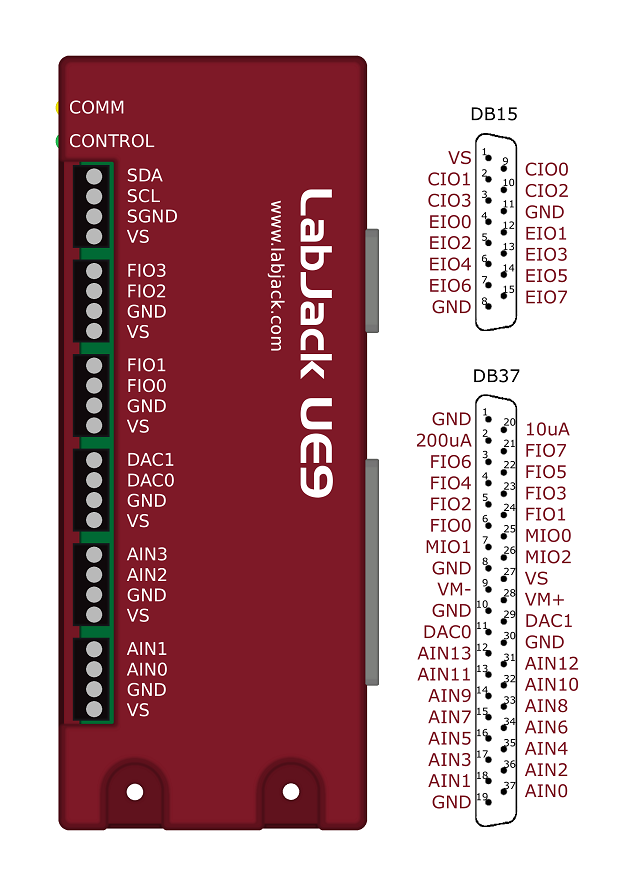

The UE9 has 3 different I/O areas:
-
Communication Edge,
-
Screw Terminal Edge,
-
DB Edge.

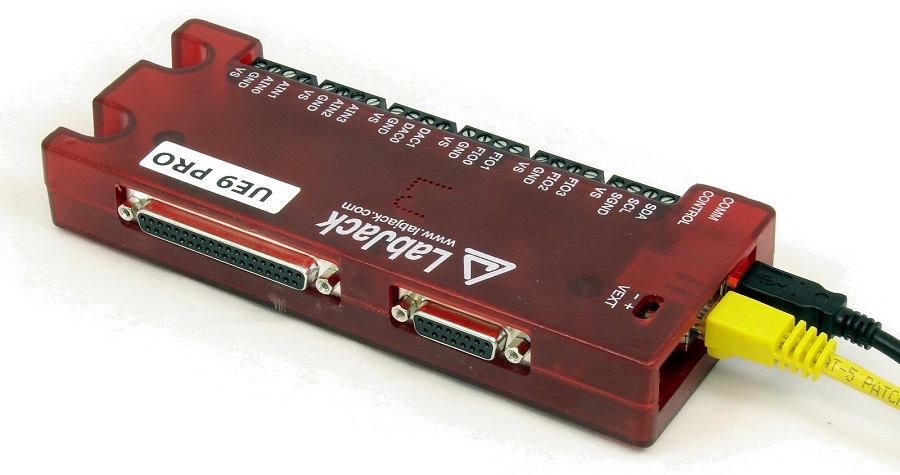

The communication edge has a USB type B connector (with black cable connected in Figure 2-1), a 10Base-T Ethernet connector (with yellow cable connected in Figure 2-1), and two entry points for external power (screw-terminals or power jack).
The screw terminal edge has convenient connections for 4 analog inputs, both analog outputs, and 4 digital I/O (FIO). The screw terminals are arranged in blocks of 4, with each block consisting of Vs, GND, and two I/O. Also on this edge are two LEDs associated with the two processors in the UE9.
The DB Edge has 2 D-sub type connectors: a DB37 and DB15. The DB37 has some digital I/O and all the analog I/O. The DB15 has 12 additional digital I/O.
Subsections
-
2.1 - USB [UE9 Datasheet] -
2.2 - Ethernet [UE9 Datasheet] -
2.3 - Vext (Screw Terminals and Power Jack) [UE9 Datasheet] -
2.4 - Comm and Control LEDs [UE9 Datasheet] -
2.5 - GND and SGND [UE9 Datasheet] -
2.6 - VS [UE9 Datasheet] -
2.7 - AIN [UE9 Datasheet] -
2.8 - DAC [UE9 Datasheet] -
2.9 - Digital I/O [UE9 Datasheet] -
2.10 - Timers/Counters [UE9 Datasheet] -
2.11 - SCL and SDA (or SCA) [UE9 Datasheet] -
2.12 - DB37 [UE9 Datasheet] -
2.13 - DB15 [UE9 Datasheet] -
2.14 - OEM Connector Options [UE9 Datasheet]
