Production Status: NLA (no longer available). The 12/24 VDC to USB Power Adapter has been replaced by the DC-DC Power Adapter.
This IPS converter has has discontinued in favor of the more robust version linked above.

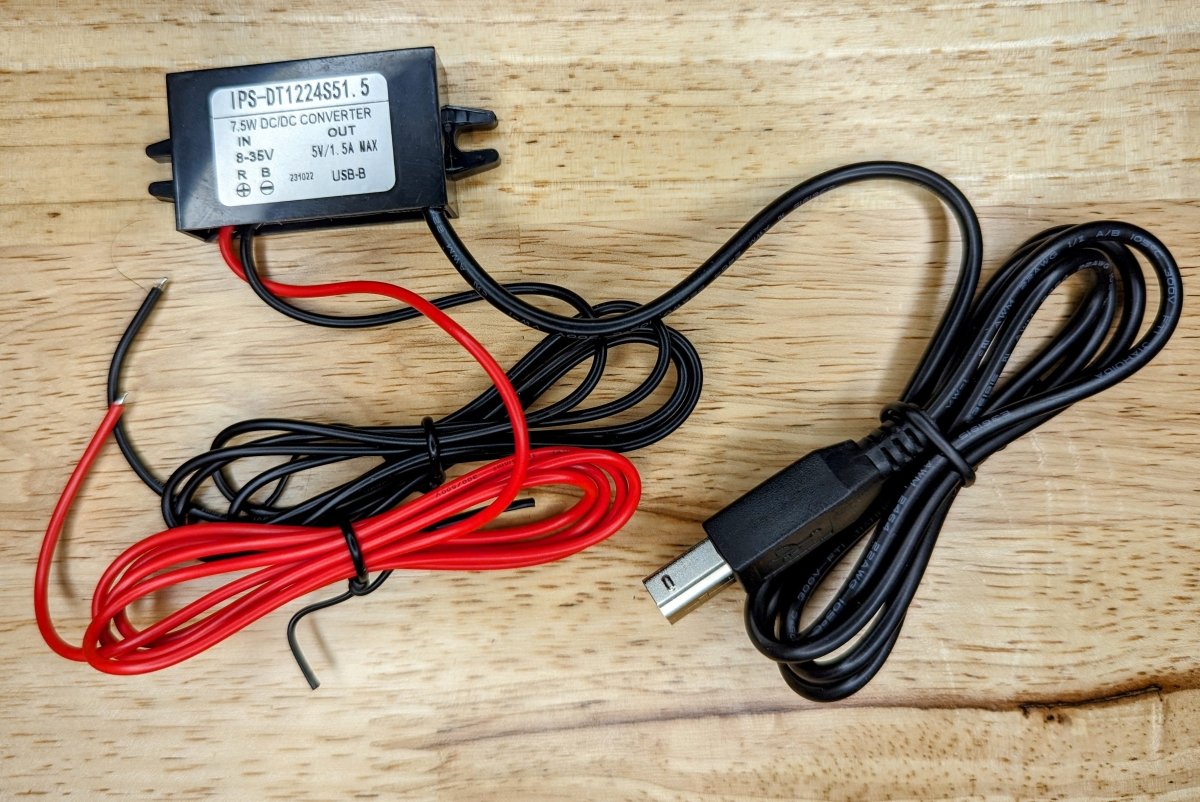

This IPS-DT1224S51.5 power converter from IPS was an accessory for LabJack applications where USB 5V DC power was not readily available. It was useful for using a 12 or 24 VDC source to power an Ethernet connected T-Series LabJack.
Features:
-
5V output via USB Type B male connector to power a LabJack T4, T7, T7-Pro and T8
-
Ethernet connection required for data/communication with LabJack device
-
8-35V input range for industrial, automotive and commercial applications
-
3-feet/1-meter input pigtails and output cable
-
Output rated for 1.5 amps/ 7.5 watts
-
Dimensions 46x27x14 MM
-
Working Temp -40°c ~ +80°c
-
Water-resistant IP65 rating
